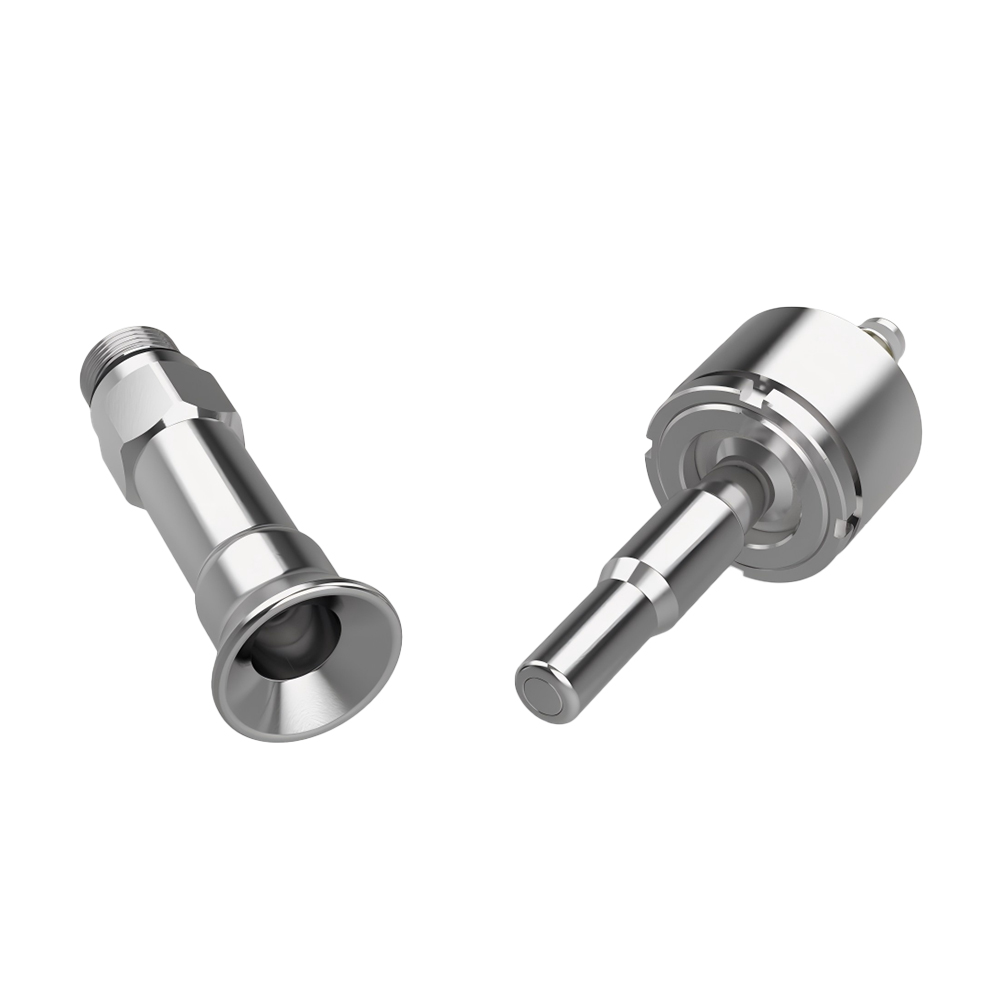

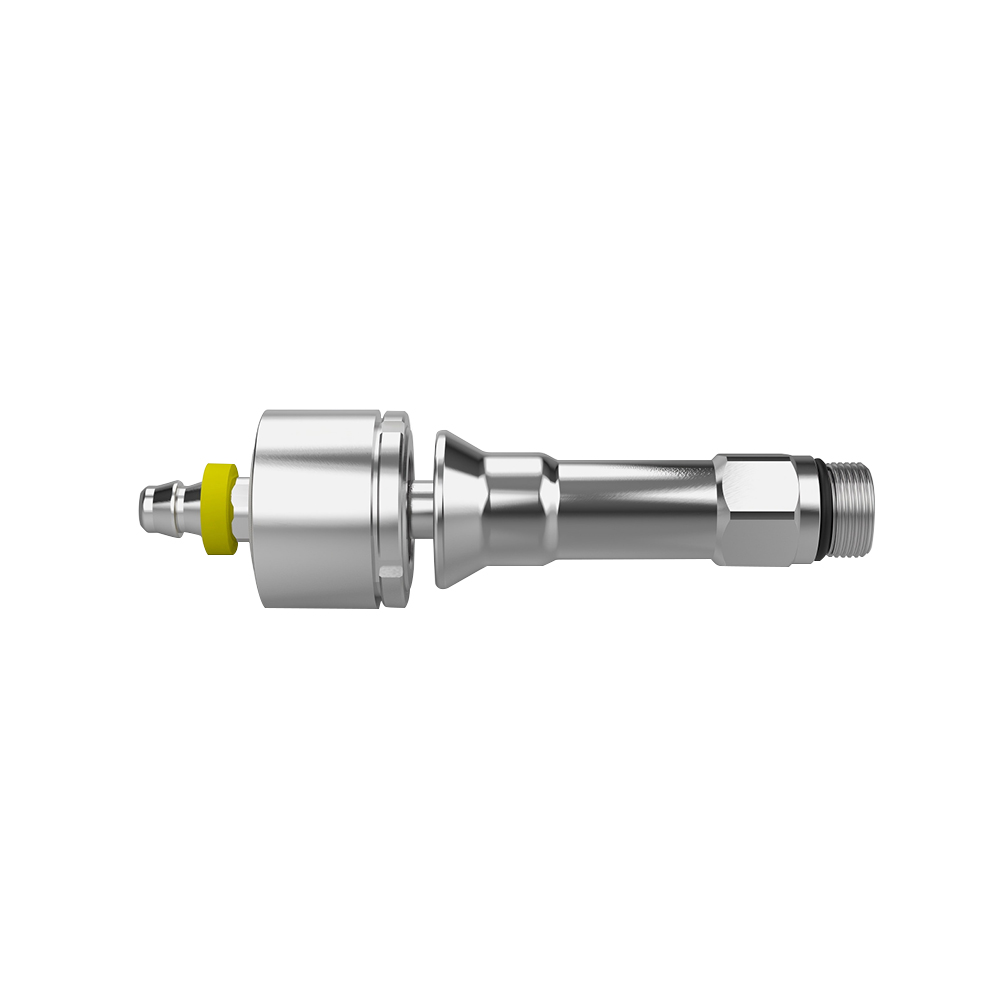

Developed in accordance with the OCP specification, BMQC interchangeable blind mate coupling is designed for data center liquid cooling applications. Its compact structure and large blind mate tolerance allow fast and convenient connection while accommodating installation misalignment. With ±5 mm axial/radial misalignment tolerance and 2.7° angular misalignment tolerance, BMQC is an ideal quick coupling solution for Direct Liquid Cooling (DLC) equipment in data centers.
| Nominal Diameter | DN05-DN10 |
| Working Pressure | 0-3.45bar |
| Misalignment Data | X/Y±5mm, Z-5mm, angularity 2.7° |
| Body Material | SS 316L |
| Working Temperature | -5°C ~ 60°C |
| Seal Material | EPDM(HNBR、 FVMQ optional) |
| Fluids | Ethylene glycol coolant, propylene glycol cool-ant, deionized water, etc |
Zero Leakage
Hot Disconnect at 6.9 Bar
5,000 Safe Mating Cycles
Low Flow Resistance
