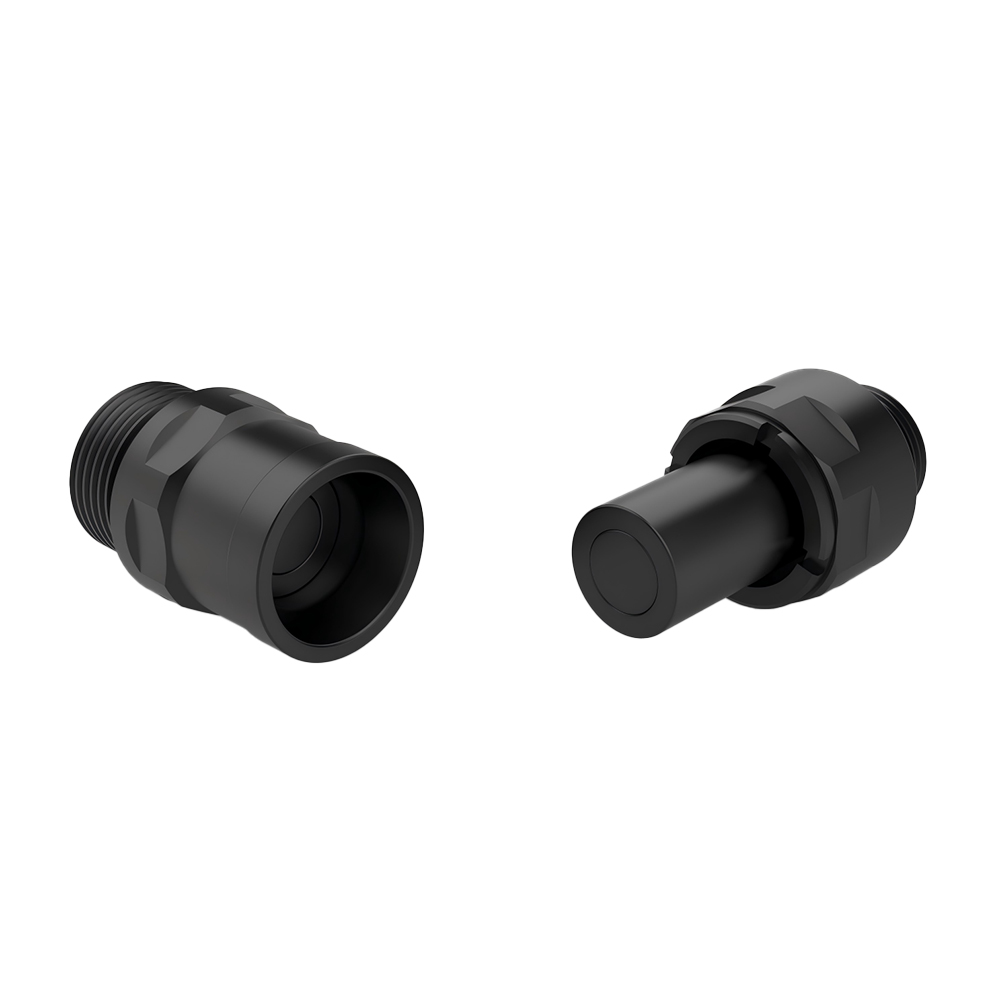

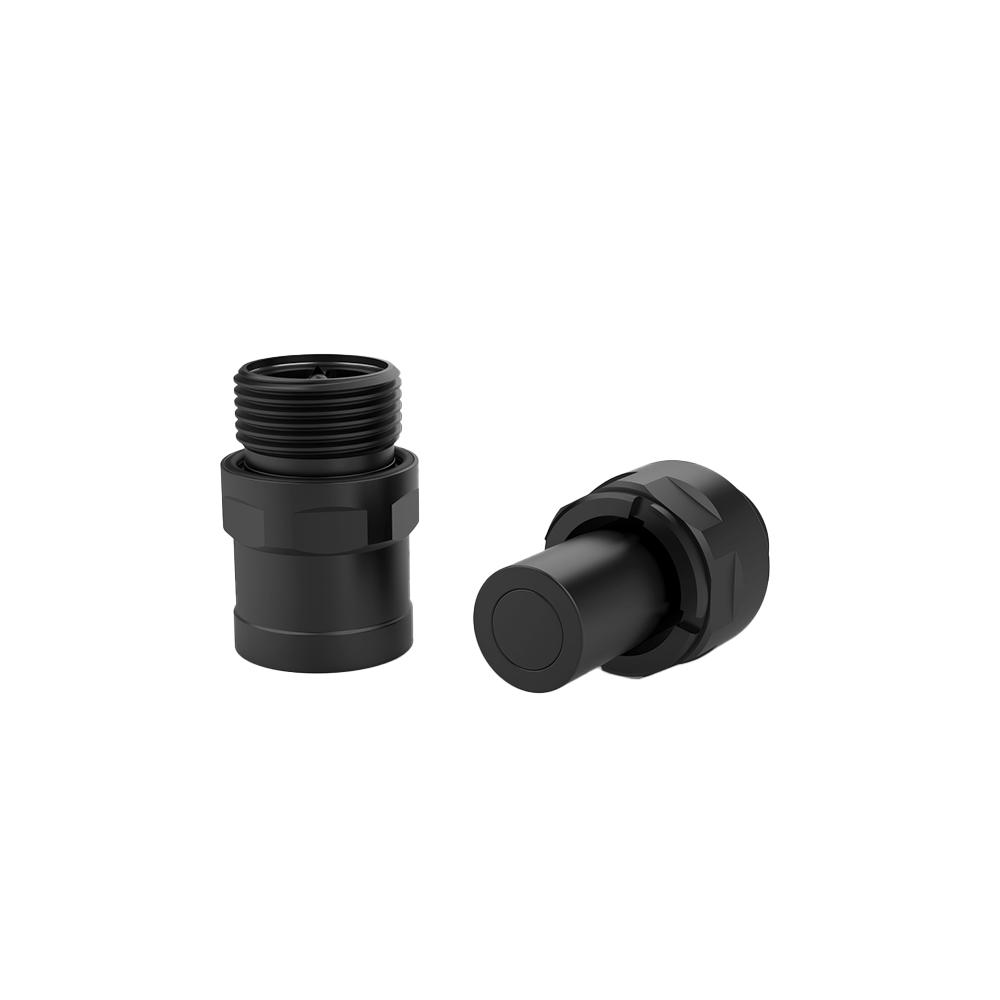

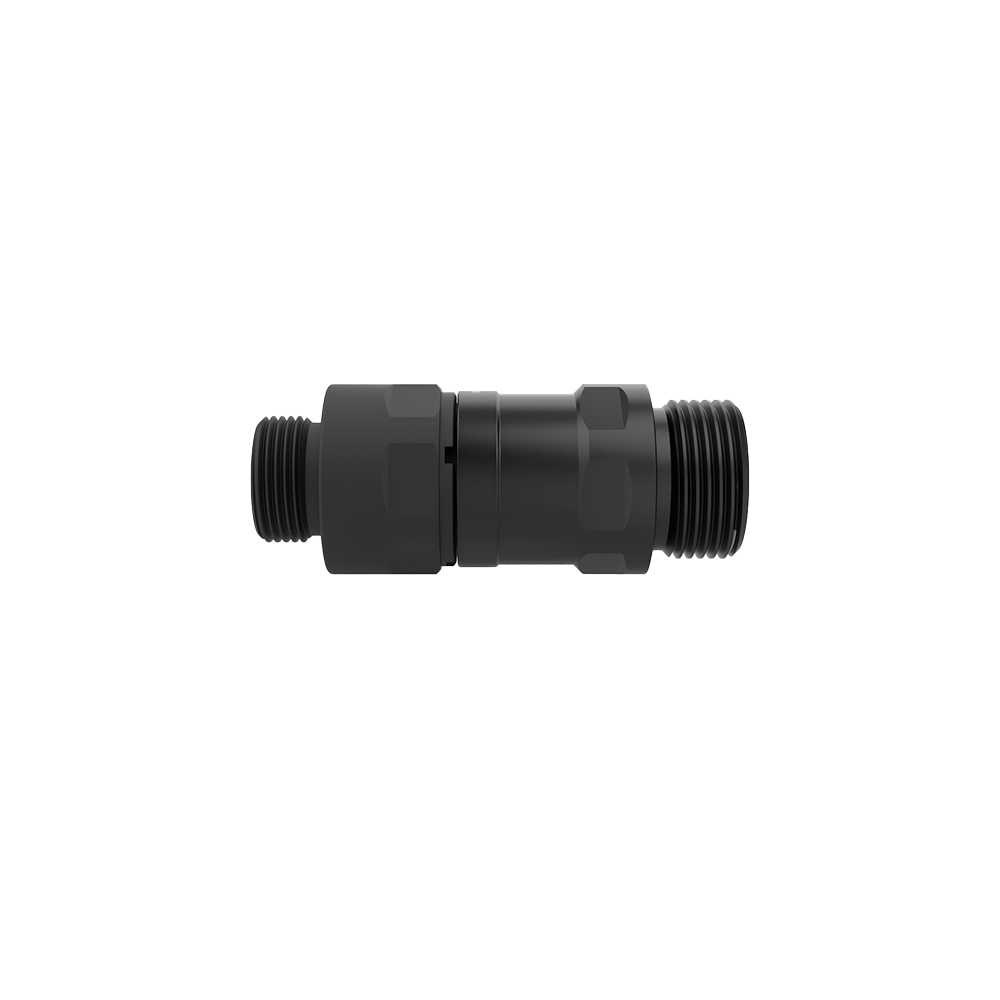

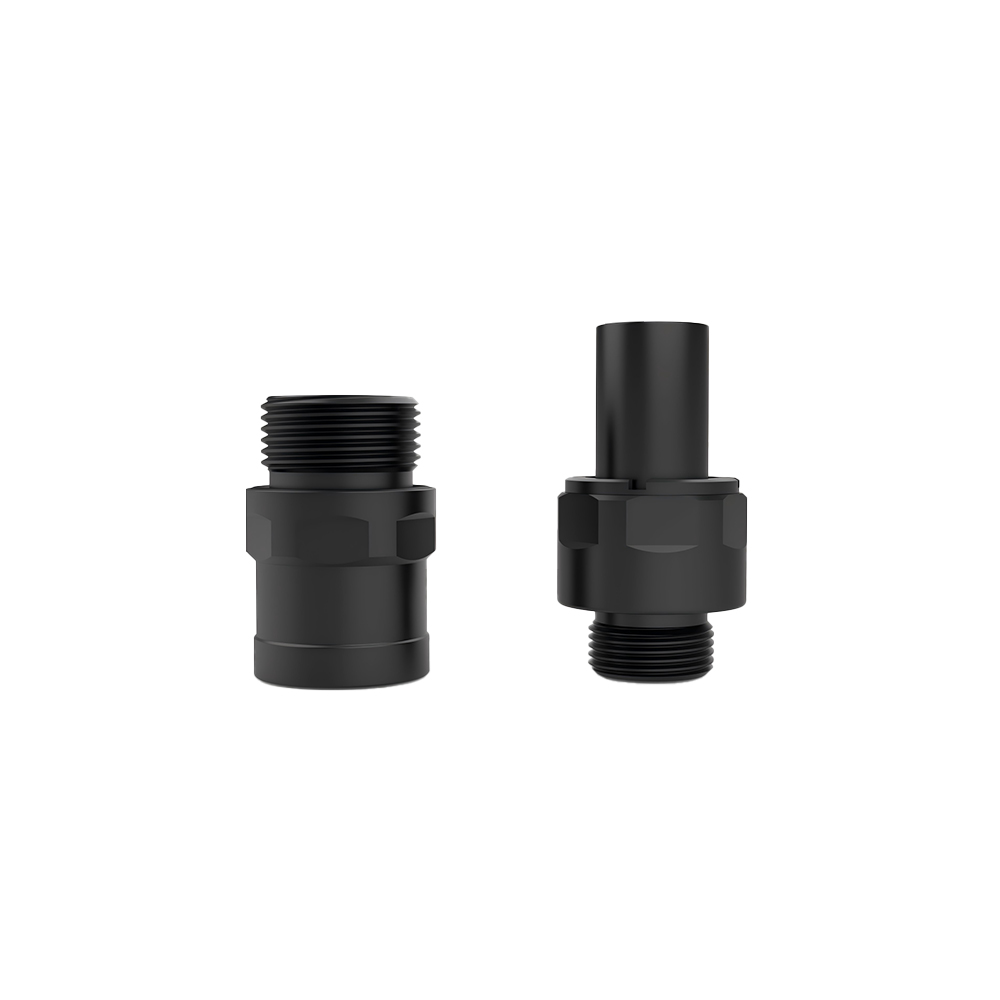

BFC series features an integrated high precision 3D floating compensation mechanism that automatically accommodates multidirectional misalignment. Combined with a large angle guiding structure, it ensures smooth and reliable blind mating. The series adopts an industry standard flat face double shut off non drip structure for stable sealing performance during connection and disconnection.
The range covers DN15 to DN32, offering strong interchangeability, reliable sealing, low pressure drop and long mechanical service life. BFC is suitable for the applications of server cold plate cooling, CDU cooling system, energy storage liquid cooling and industrial equipment.
| Nominal Diameter | DN15-DN32 |
| Working Pressure | 0-20bar |
| Misalignment Data | X/Y ±2.5mm |
| Body Material | Aluminum Alloy、Stainless Steel |
| Working Temperature | -40°C ~ 120°C |
| Seal Material | EPDM(HNBR、 FVMQ optional) |
| Fluids | Ethylene glycol coolant, propylene glycol cool-ant, deionized water, etc |
Zero Leakage
Hot Disconnect at 6.9 Bar
5,000 Safe Mating Cycles
Low Flow Resistance
