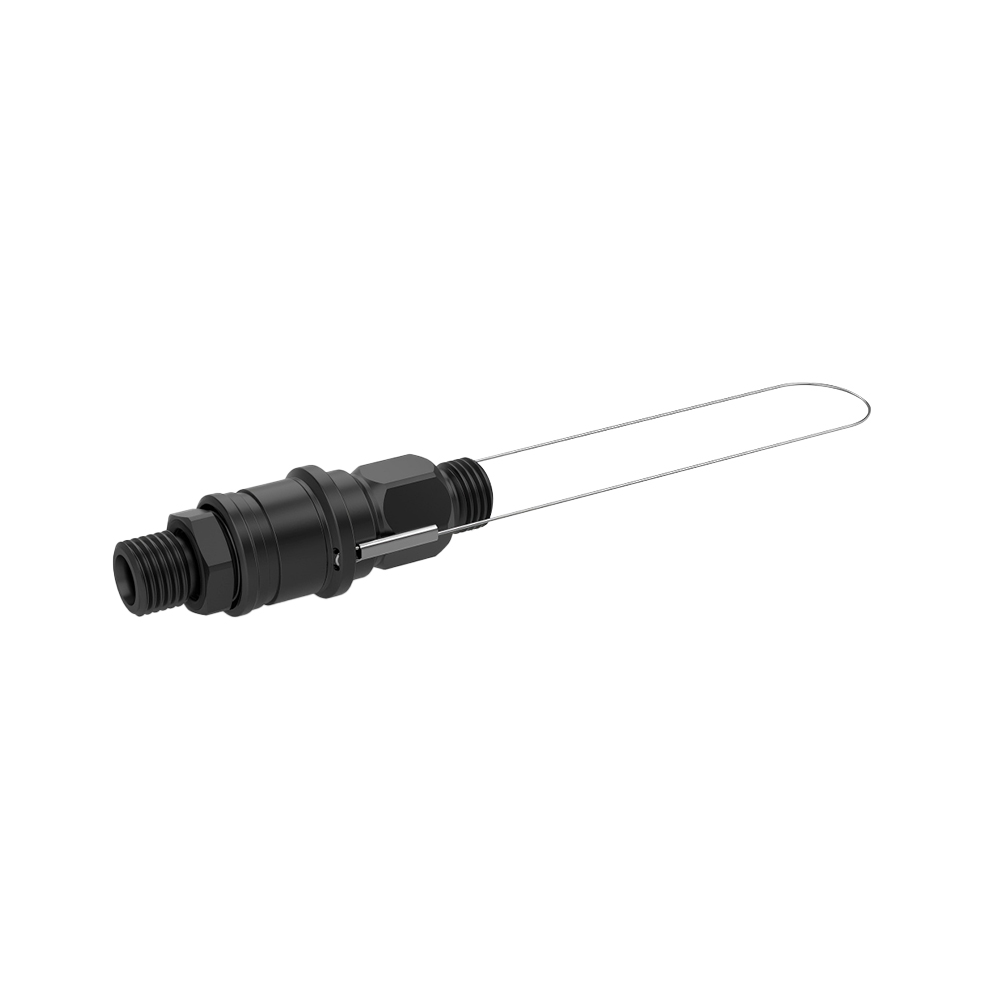

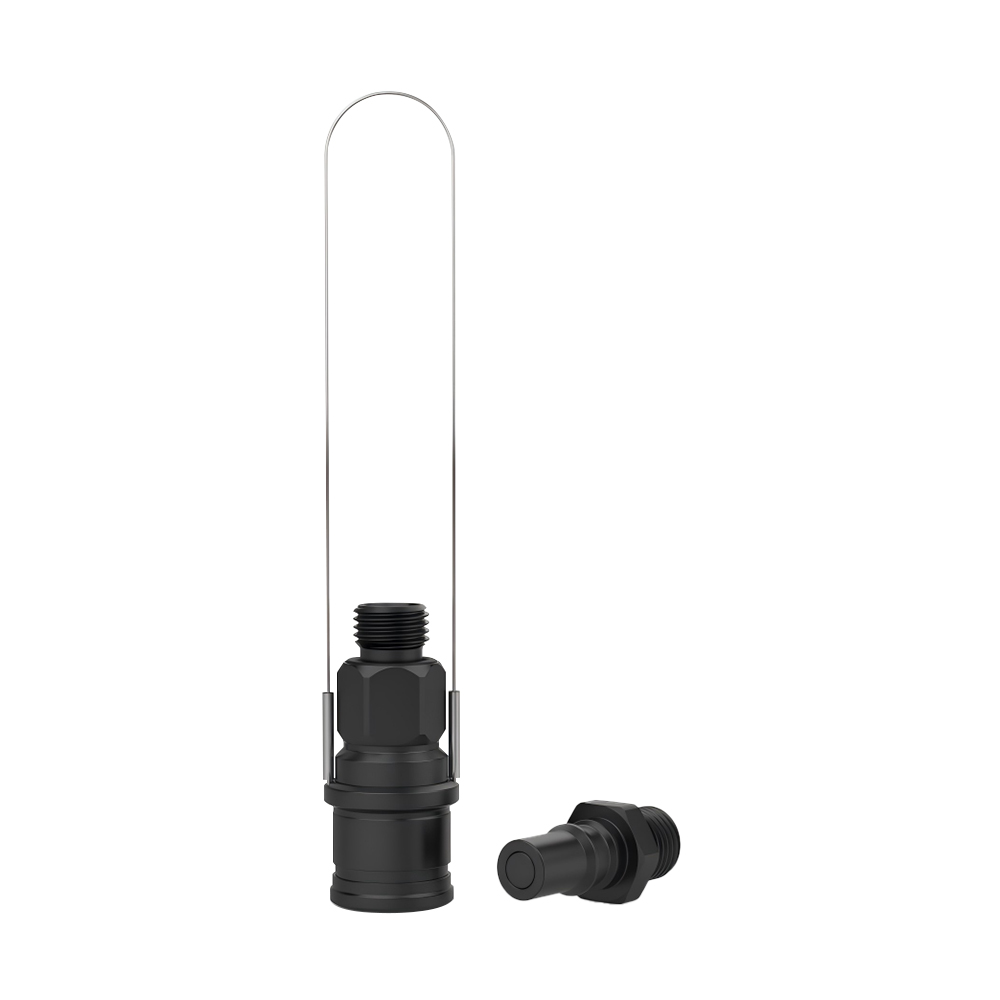

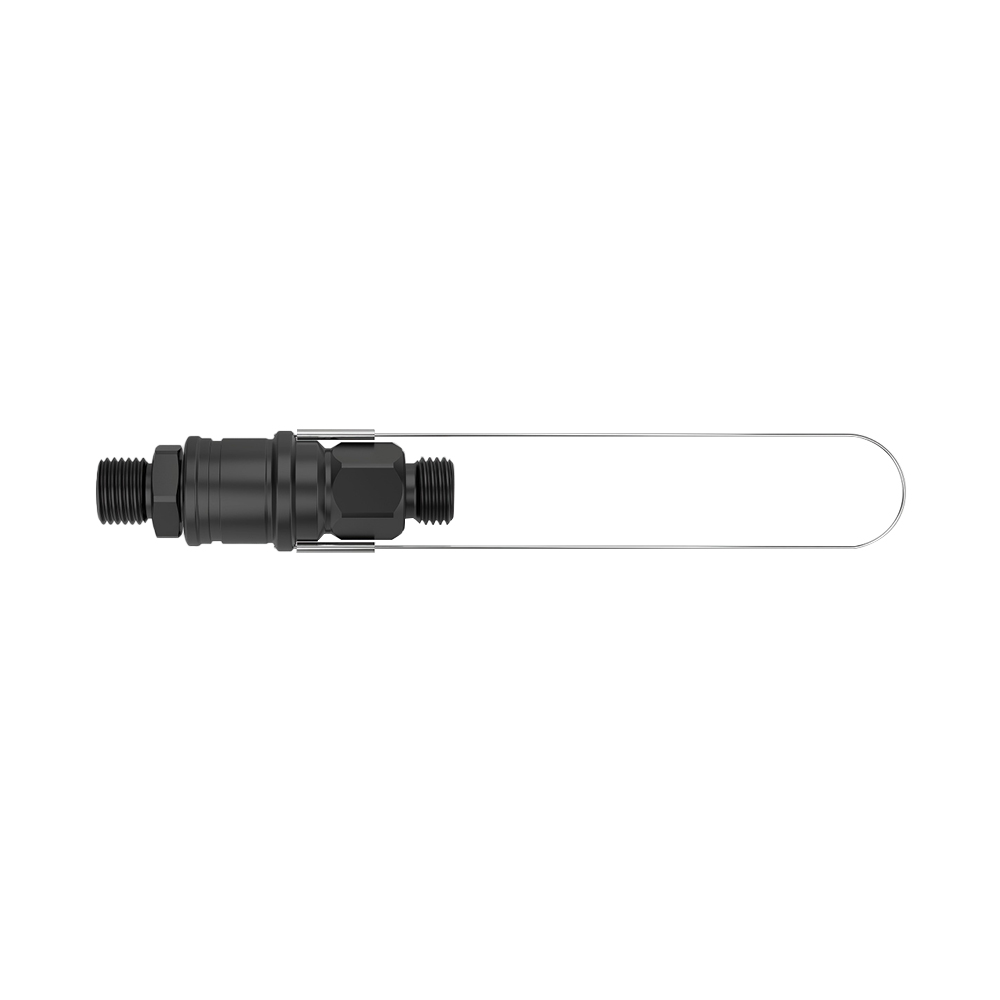

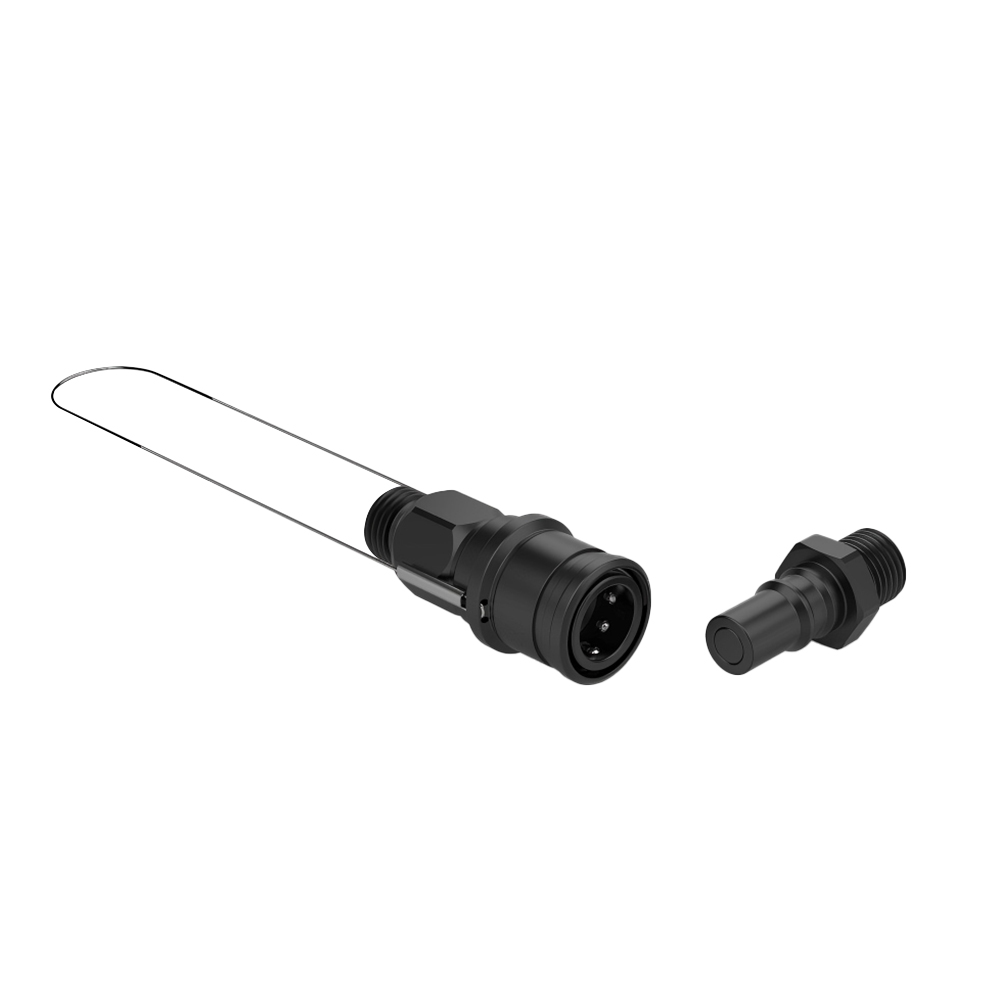

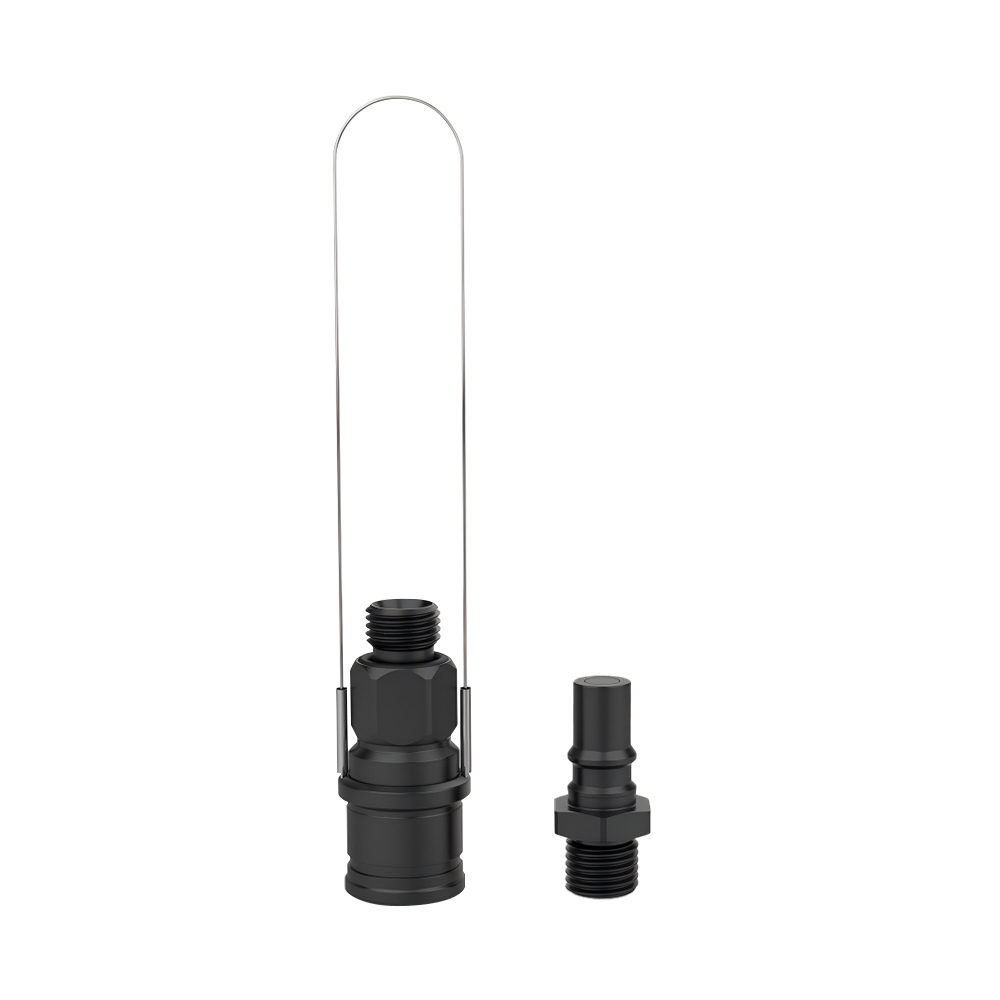

WPT Series Two-Phase Immersion Manual Coupling

WPT is a standardized manual self locking quick coupling particularly suitable for immersion cooling applications.

It adopts manual push in connection with a mechanical self locking structure, enabling reliable locking and quick disconnection without additional tools, achieving simple operation and stable connection. In high density installations or confined spaces, the coupling can also be released by pulling the wire rope. It is designed for applications requiring frequent manual connection and disconnection, including equipment commissioning, system overhaul, pipeline maintenance and module replacement.

Technical data

Nominal DiameterDN05、DN08
Working Pressure0-20bar
Body MaterialAluminium Alloy
Working Temperature-30°C ~ 125°C
Seal MaterialButyl Rubber
FluidsFluorinated liquid

Key Features

  • Non‑drip
  • High sealing performance
  • High density Installations

Applications

  • Al Factories

Why is NETONX exceptionally safe & reliable?

Zero Leakage

Zero Leakage

Hot Disconnect at 6.9 Bar

Hot Disconnect at 6.9 Bar

5,000 Safe Mating Cycles

5,000 Safe Mating Cycles

Low Flow Resistance

Low Flow Resistance
