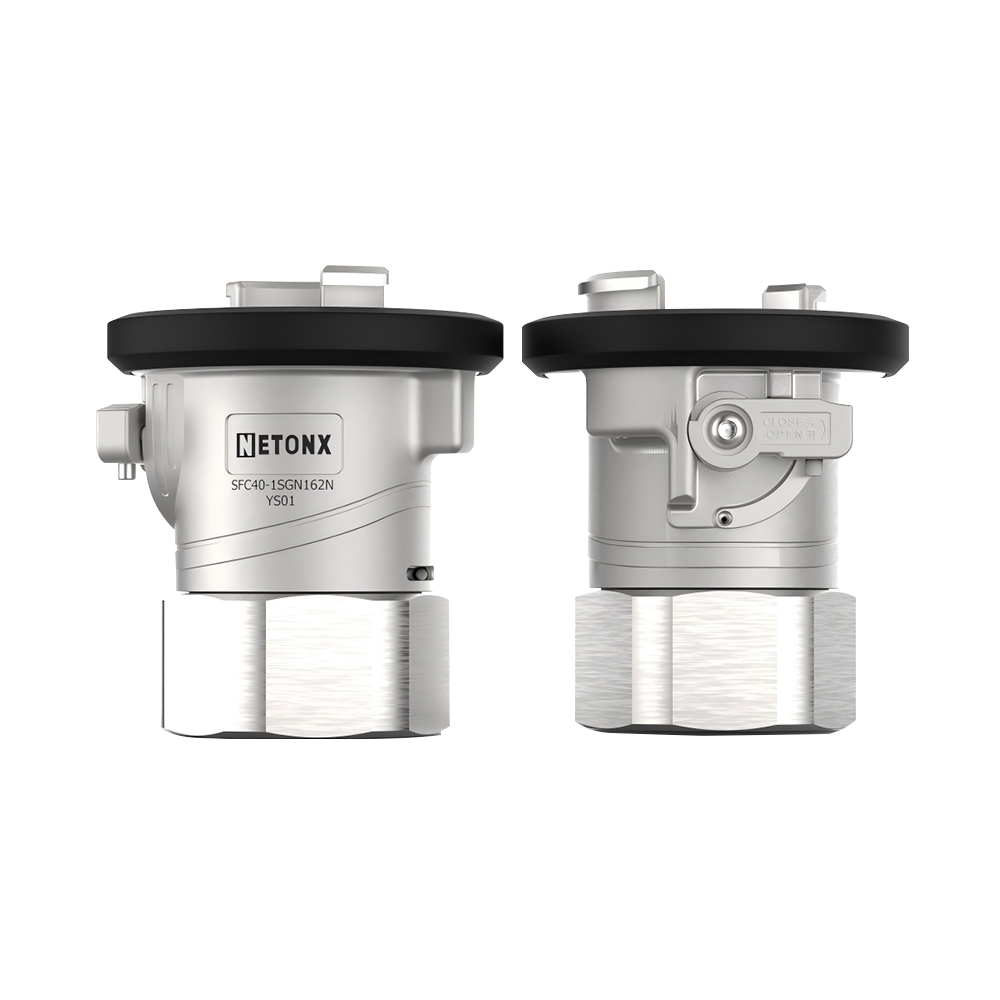

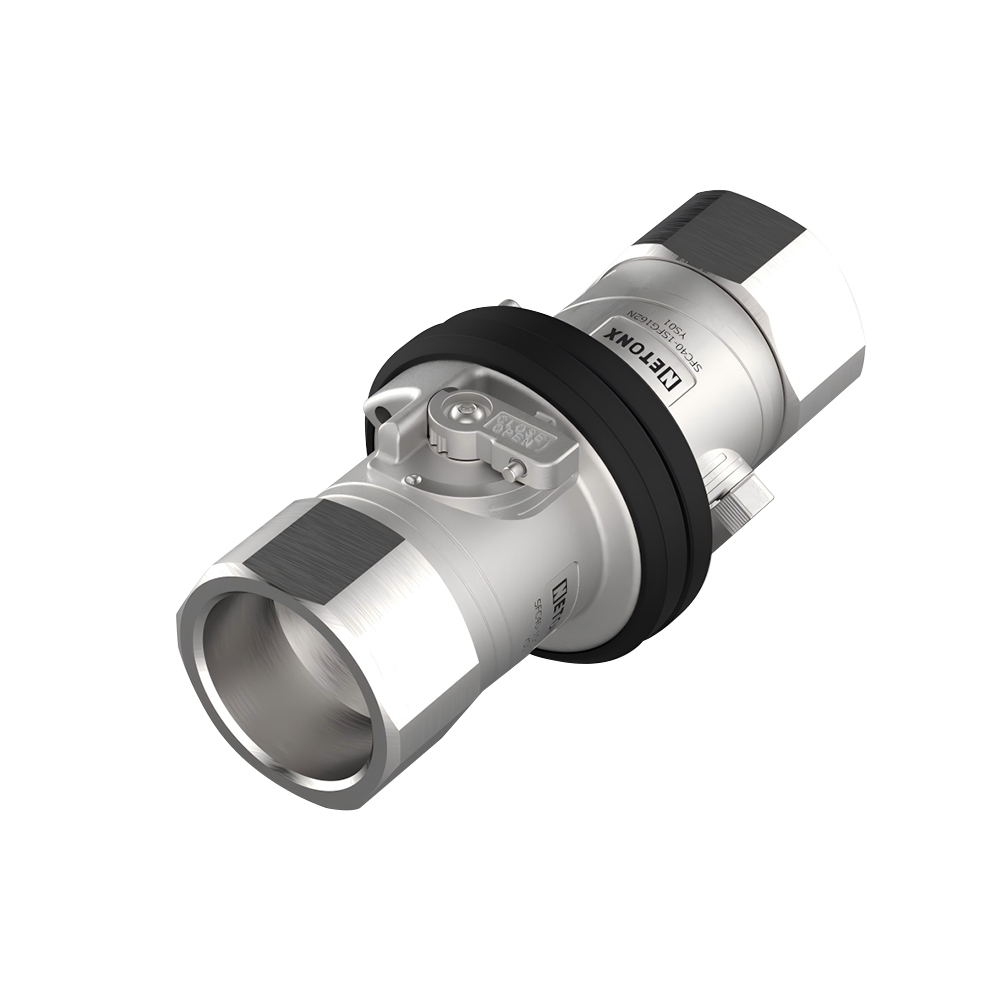

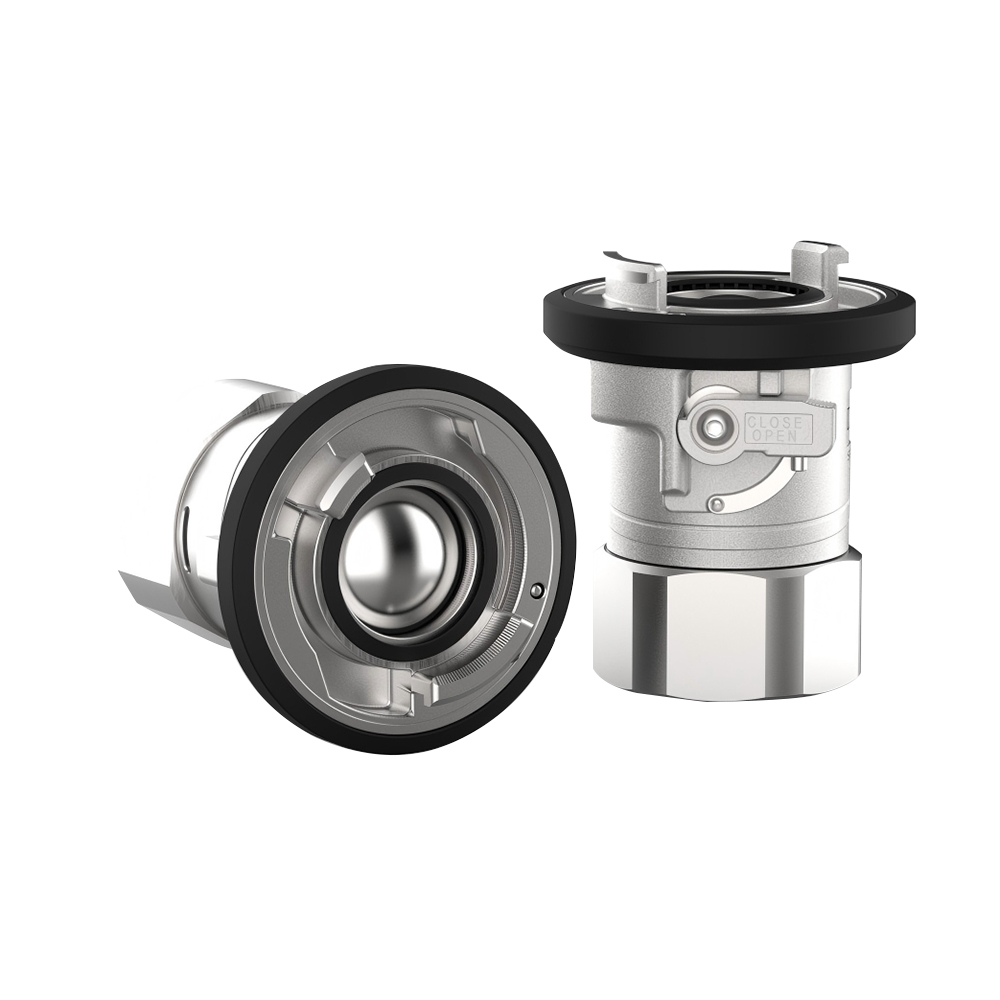

SFC series provides high flow capacity while maintaining low pressure drop and enabling quick disconnection. It adopts a full flow ball valve structure with a spherical valve core. Once connected, the internal flow passage forms a full bore path, providing flow performance close to that of a pipe with the same inner diameter. A dual interlock mechanism effectively prevents accidental operation.
| Nominal Diameter | 1 inch / 1.5 inches / 2 inches |
| Working Pressure | 0-16bar |
| Body Material | Stainless Steel |
| Working Temperature | -40°C ~ 120°C |
| Seal Material | EPDM（FKM optional） |
| Fluids | Ethylene glycol coolant, propylene glycol cool-ant, deionized water, etc |
Zero Leakage
Hot Disconnect at 6.9 Bar
5,000 Safe Mating Cycles
Low Flow Resistance
